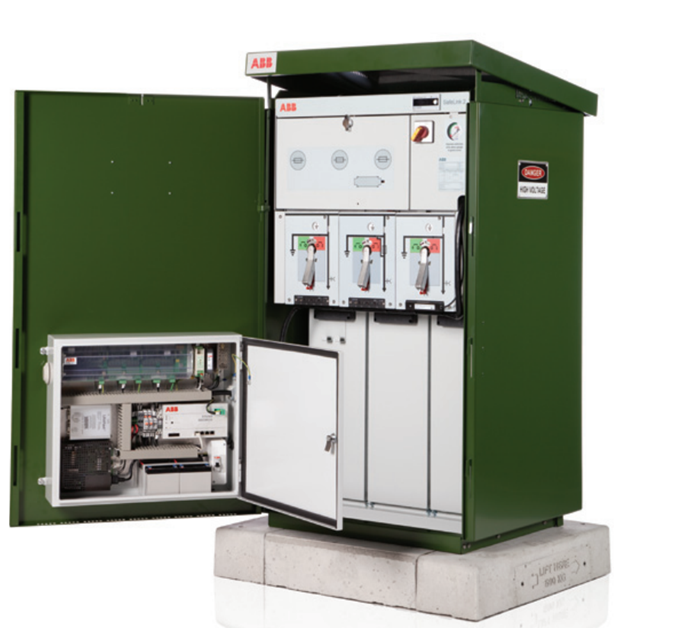

Safelink 2 compact 12kV ring main switchgear from ABB delivers smart, safe and compact solutions for secondary distribution applications.

The result is an inherently safe, cost-effective, flexible and innovative solution. It boasts smart control and monitoring of distribution networks through a modular plug and play automation options. The customer interface panel allows networks to connect to SCADA or other control systems ensuring easy integration and is ready for operation in smart networks.

Safe installation and operational safety features ensure live and switching functions are hermetically sealed in an SF6 insulated tank. A fully mechanically interlocked solution enables easy operation and access. The cable box and fuse compartment cannot be accessed when voltage is present. The arc venting design of the tank and cable box is fully compliant with IEC 62271-200 on internal arc fault classification (IAC). Pictured is Stock code 2468767

Safelink 2 is ideal for:

• compact secondary substations
• small industries
• renewable power plants
• hotels, shopping centres
• office buildings and business centres
